Picatinny Rails

MTN Gear have produced a range of ultralight picatinny rails designed especially for your lightweight backcountry hunting trips.

We have options for your rifle, spotting scope, camera and webbing straps.

Models

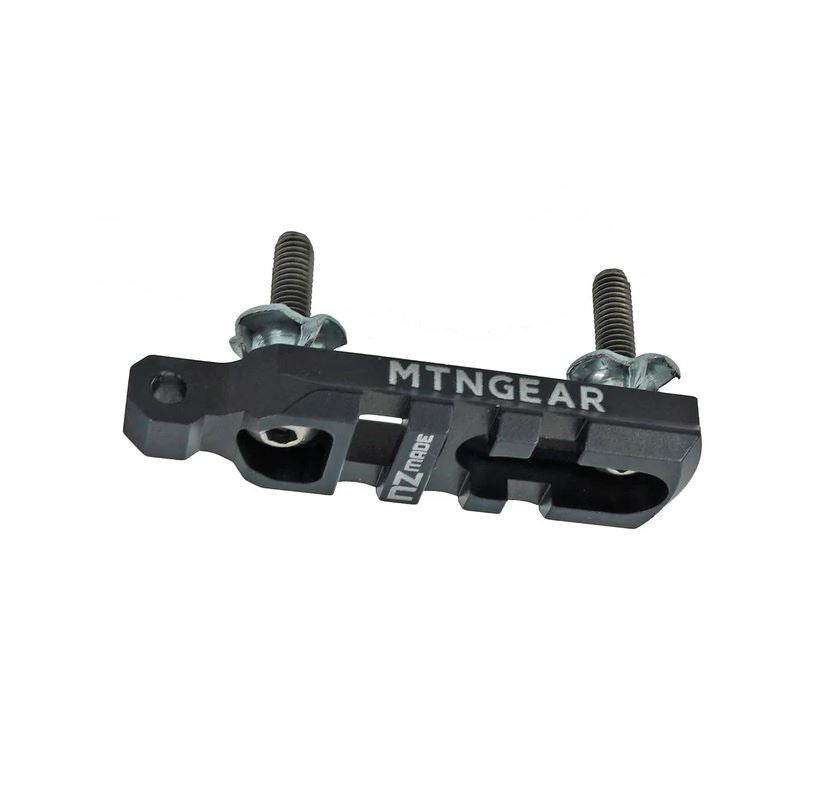

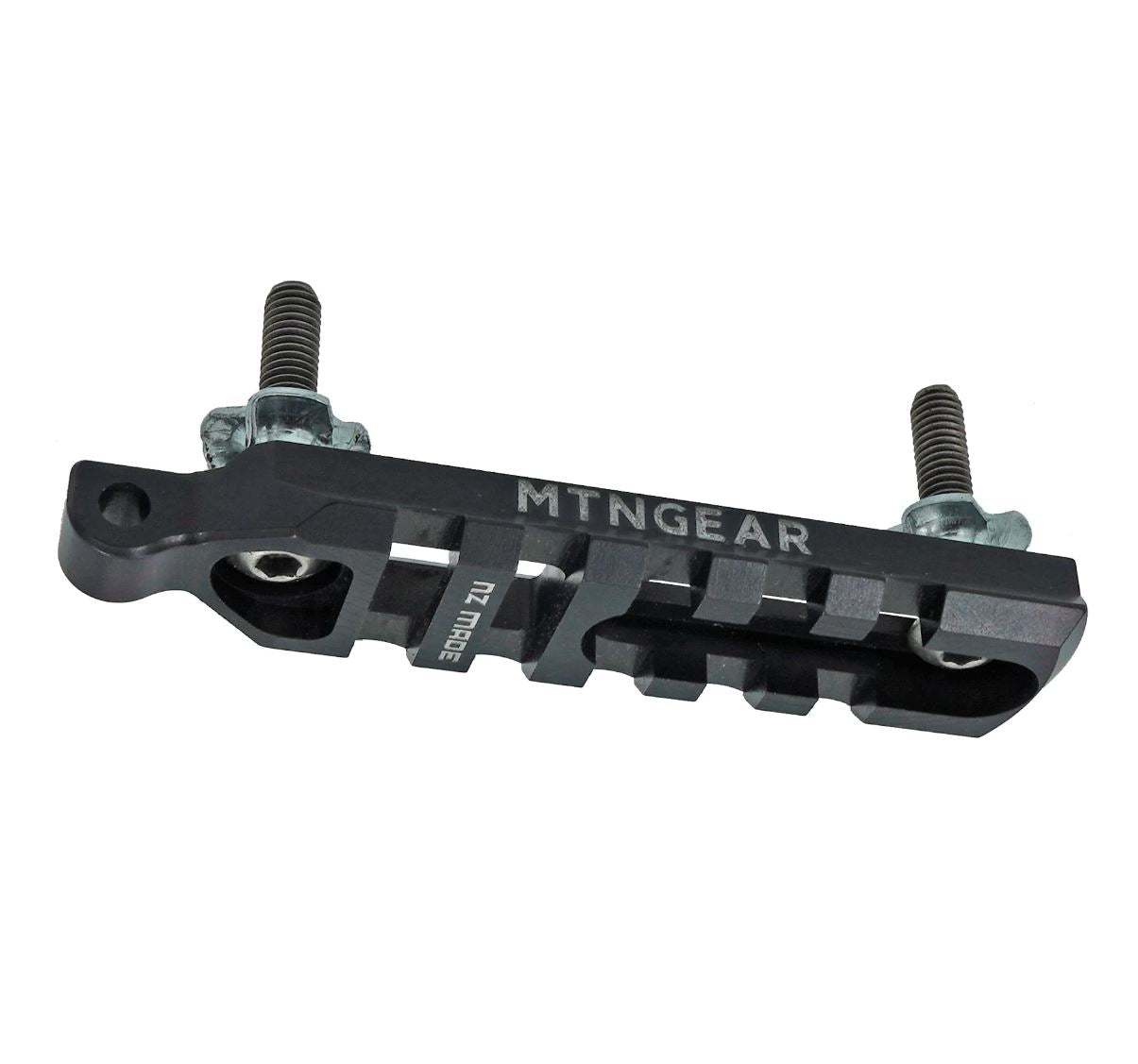

• Forend rail with sling attachment. 12.1grams (0.43oz), anodized aluminium and standard bolt holes with 25-40mm centers.

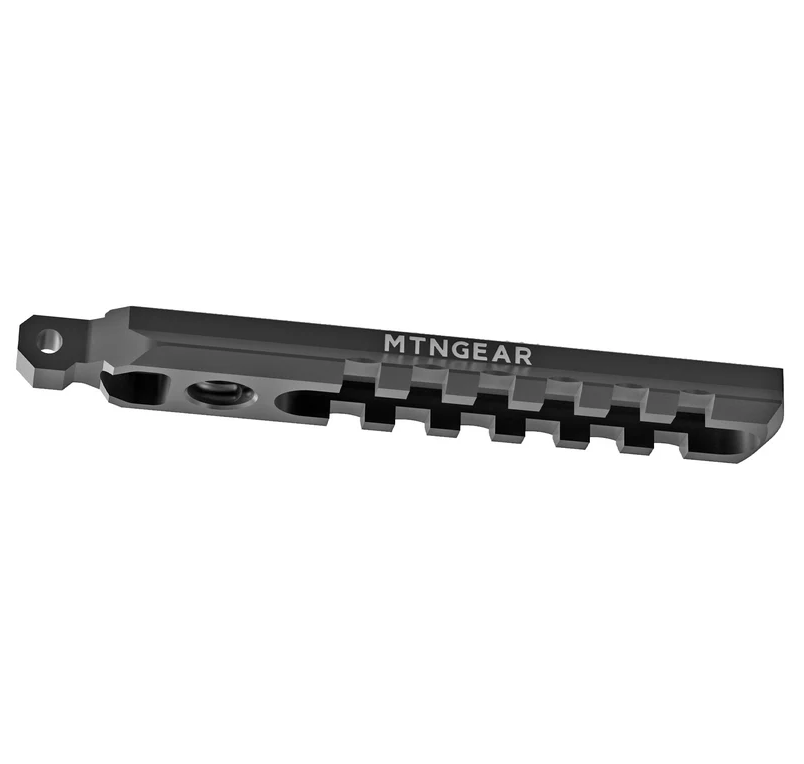

• Extended forend rail with sling attachment. 16.8grams (0.59oz), anodized aluminium and bolt holes centers 30-60mm.

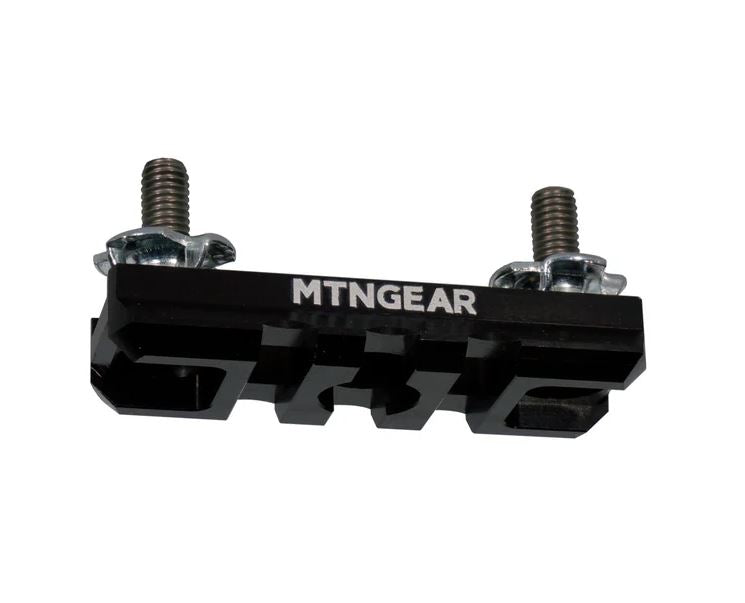

• Forend rail - 3 hole. 12grams (0.42oz), anodized aluminium and standard bolt holes with 40mm centers and center hole halfway.

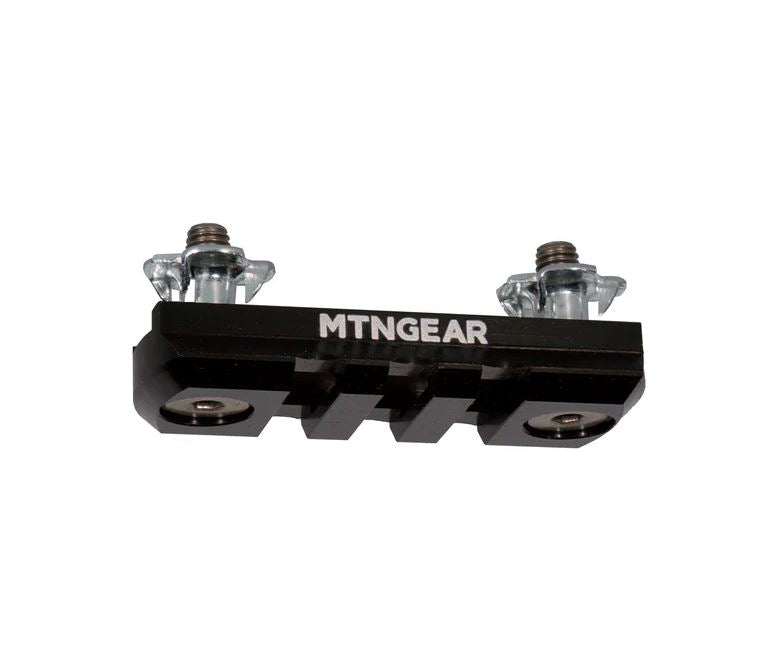

• Forend rail - 2 hole. 10.5grams (0.37oz), anodized aluminium and standard bolt holes with 40mm centers.

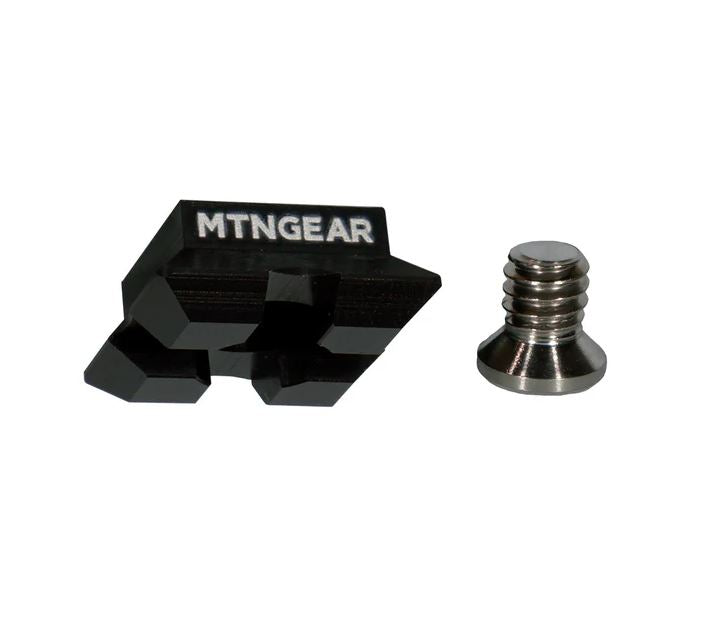

• Camera multi directional picatinny rail. 6.7grams (0.23oz), anodized aluminium and custom titanium 1/4 bolt.

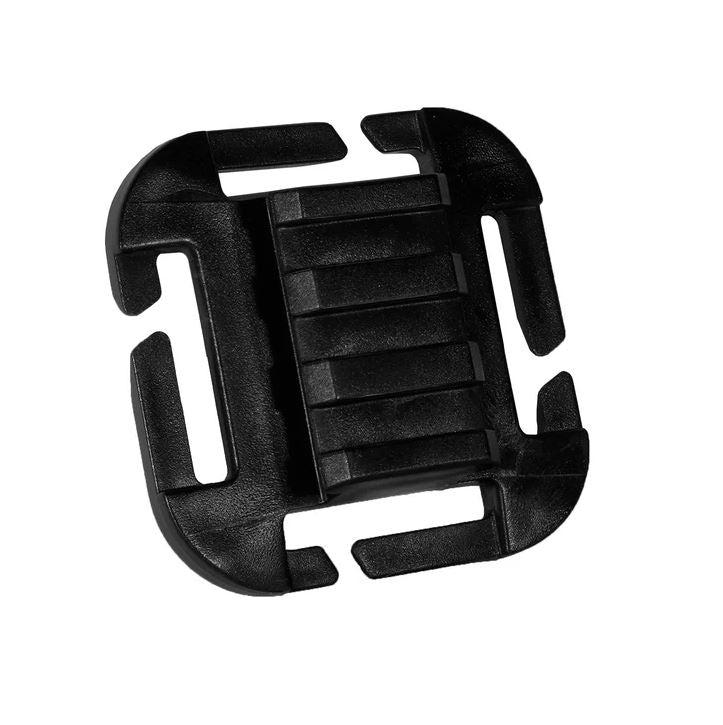

• Webbing picatinny rail. 12.6grams (0.44oz), Injection molded plastic

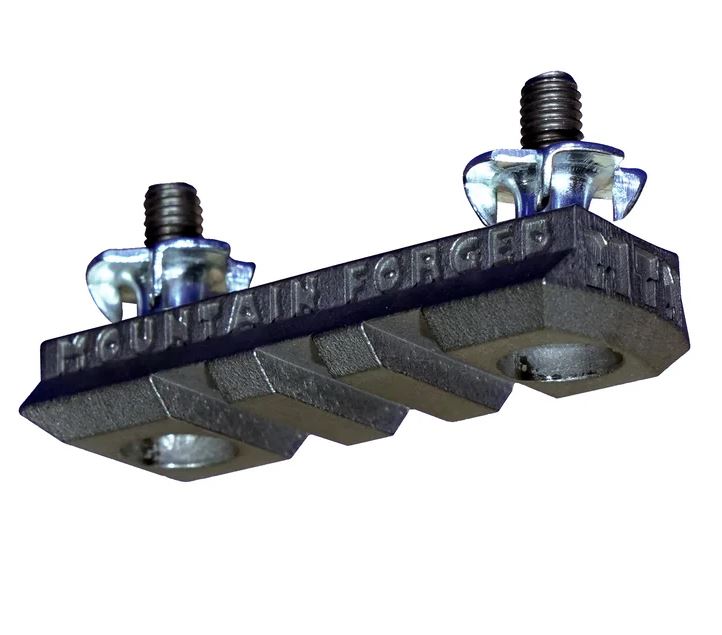

• Rifle forend rail. 7.5grams (0.26oz), titanium, one end is flat and non standard bolt holes with 36mm centers.


All rifle rails come with required attachment fittings. Additional mounting hardware is available to purchase if required.

See information on how to install your picatinny rails here.

https://youtu.be/9uy6igUdPVs

Our Picatinny rails are based on the NATO accessory rail standard (known as STANAG 4694)
